Special Features:

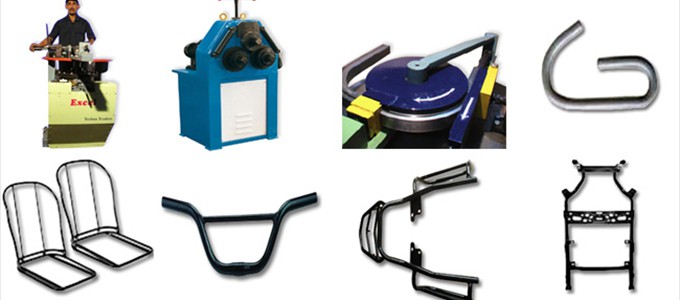

1) Two In One Models For Rotary Die Bending And 3-Roller Bending On The Same Machine Available.

All Bending Requirements Of Smaller Radius Bends To Very Large Bends Up to Few Meters Possible On The Same Machine Possible


2) Left hand and Right Hands Bends Possible on the same Machine.



Salient Features:

•

Capacity Up to 3.00”

•

Fulley Automatic Operation Easy to Set & Operate

•

Smooth Wrinkle Free Bends.

•

Sharp Bends Up-to 1.5D

•

No Filling of Sand Or Spring.

• CNC Models Available


We Also Undertake Job work in Pipe Bending Up to 3.00” Round and 2.00” Square Pipes.



Excel Pipe Bending Machine : Tech.Specifications

Feartures
Technical Specifications
Models
Excel -1
Excel - 2
Excel - 3
Excel - 4
Light Bending Medium Bending Heavy Bending Extra Heavy Bending
Capacity
Approx. Pipe Bending Capacity
Up to 1 1/4" (31.25 mm.) Round and 1.00 Square Upto 2.00"(50.8 mm)Round and 1.5"square. Upto 2.00" (50.8 mm)Round and 2.00" square Up to 3.00" (76.2 mm) Round and 2.00 Square
Major Parts
Elect. Motor
2 H.P. 3 H.P. 5 H.P 6 H.P
Reduction Gear Box
David Brown A-287 David Brown A-337 David Brown A-337 David Brown
Working Table
24.00"(610 mm) Dia 30.0"(762 mm) Dia 30.0"(762 mm) Dia 33.0"(838 mm) Dia
Overall Dimensions
Length
 37.00" (940 mm.) 37.00" (940 mm.) 37.00" (940 mm.) 37.00" (940 mm.)
Breadth
 24.00"(610 mm.) 24.00"(610 mm.) 24.00"(610 mm.) 24.00"(610 mm.)
Height
 36.00" ( 915 mm.) 36.00" ( 915 mm.) 36.00" ( 915 mm.) 36.00" ( 915 mm.)
Bending Speed
4 R.P.M. Approx
Bending Direction
Clock wise & Anticlockwise ( Left hand Right hand)
On the Same Machine
